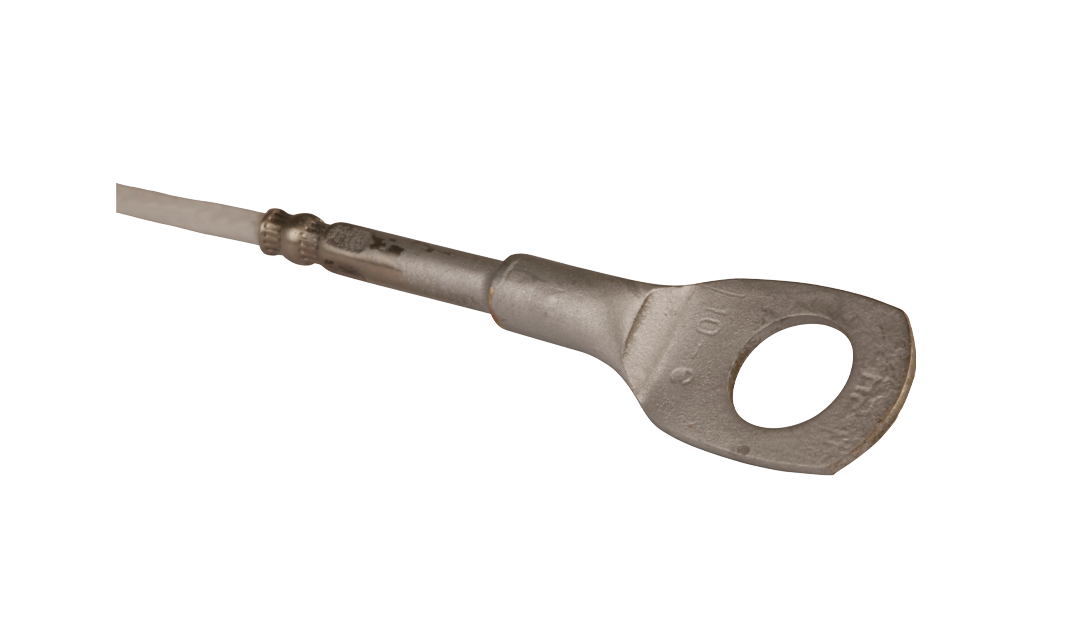

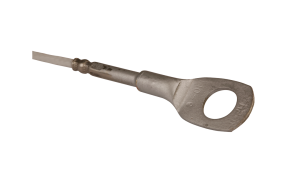

VIGITHERM GST 100 HX – Bearing temperature sensor PT100
SENSORJET© Temperature probe
VIGITHERM GST 100 HX – Bearing temperature sensor PT100
SENSORJET© Temperature probe
Caractéristiques techniques
Détection
Pt 100 temperature probe
Use in ATEX 20 dust zone.
Connection without intrinsic electrical barrier for a voltage less than or equal to 30V.
Analog signal requiring a power control interface (analog thermostat / PLC).
Terminal type fitting for mounting on straight grease nipple 1/83″G, 1/43″G and 3/83″G
Teflon braided Teflon cable length 3m
Operating temperature: -50°C to +180°C
Explosion-proof for explosive atmospheres
LCIE 03 ATEX 6008 X type certificate
ATEX II I D Ex td A20 IP64T80°C certified assembly
Fixation rapide en bout d’arbre :
Montage
Normes
voir schéma
Fonctions de contrôle possibles
Option
Données Techniques
Documentation
GST 100
Connection
Atex 20
Câble/Cable
55 GST 7100 J
